Epsilon 1 for automotive catalysts recycling

Looking for an easy but accurate solution?

Want to get better accuracy and precision from your handheld XRF spectrometer, while keeping your workflow as simple as possible? Our Epsilon 1 ED-XRF spectrometer is here for you.

Epsilon 1 produces precise, accurate data – quickly, cost-effectively, and with minimal operator involvement or sample preparation. It’s set up for Pd, Pt, and Rh analysis directly from the factory, so you can get started straight away. And the spectrometer is designed for ultra-safe operations and reproducible sample positioning. Plus, with its compact, robust design, all you need is a regular main connection!

This easy operation makes Epsilon 1 the ideal choice for high-quality, on-site XRF analysis.

カタログダウンロード
見積依頼 デモ依頼 お問い合わせ

Overview

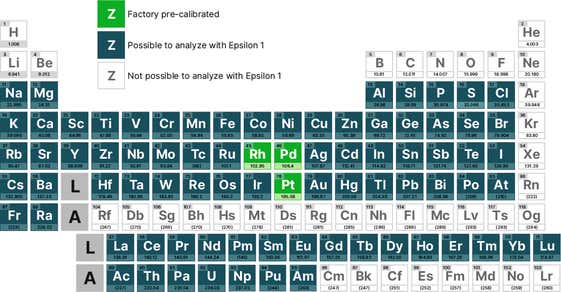

Epsilon 1 will be pre-calibrated in the factory for analyzing of Pt, Pd and Rh in spent automotive catalytic convertors. Put loose powder in a sample cup and measure directly.

[Periodic_Table_Epsilon_1_automotive_catalyst_recycling.jpg] Periodic_Table_Epsilon_1_automotive_catalyst_recycling.jpg

The accuracy of the method is validated by measuring Certified Reference Materials. The results clearly demonstrate the capability of Epsilon 1 for the analysis of valuable precious metals Pt, Rh and Pd in catalytic converters.

Sample name (repeats) Compounds Certified conc. Average conc. RMS Rel. RMS (%)
NIST 2556 (20x) Pt (ppm) 697.4 +/- 6.3 695.6 7.2 1.1
Rh (ppm) 51.2 +\- 0.5 53.9 2.0 3.7
Pd (ppm) 326 +/- 1.6 322.8 7.2 2.2
NIST 2557 (20x) Pt (ppm) 1131 +/- 1.9 1189.6 13.2 1.1
Rh (ppm) 135.1 +/- 1.9 141.6 2.2 1.6
Pd (ppm) 233.2 +/- 1.9 236.9 3.6 1.5
ERM-EB504a (5x) Pt (ppm) 1414 +/- 9.0 1424.8 5.1 0.4
Rh (ppm) 210 +/- 2.2 216.2 2.3 1.1
Pd (ppm) 1596 +/- 11 1675.1 18.3 1.1
FLX 133 (5x) Pt (ppm) 465 +/- 32 462.1 4.0 0.9
Rh (ppm) 242 +/- 4 237.6 4.0 1.7
Pd (ppm) 1075 +/- 33 1093.8 15.3 1.4

Features

[icon calibrate.png] icon calibrate.png

Factory calibrated

[icon operator simplicity button.png] icon operator simplicity button.png

Operator friendly

[icon gamma-ray x-ray shielded.png] icon gamma-ray x-ray shielded.png

X-ray shielded

[icon trust shield with tick.png] icon trust shield with tick.png

High level of trust

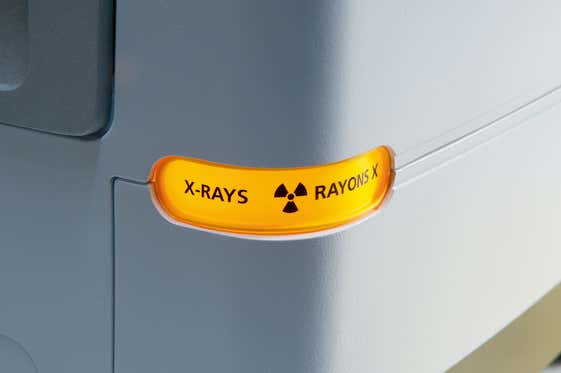

Guaranteed maximum safety

All Malvern Panalytical X-ray solutions are designed according to the strict regulations of regulatory bodies. The Epsilon 1 tabletop system shields its users against X-rays during analysis.

You’ll have peace of mind in the lab thanks to a unique internal interlocked enclosure providing complete radiation protection, deserving its Vollshutz classification. No need to worry about safety as the system is fully enclosed and completely safe.

Guaranteed maximum safety

Be Flexible

Sometimes, it’s just not possible or worthwhile to calibrate all your sample types. Perhaps there are no standards, or those that are available are too expensive. But you can still use a generic method to analyze the elemental composition of a single sample. Even better – this method is available on our Epsilon 1 XRF benchtops.

How does this work? By using our standardless Omnian software! Combining twenty generic samples with the power of physics, Omnian can quantify elemental composition for a wide variety of sample types – including polymers and liquids.

Be Flexible

内蔵装置

強力なCPUと120 GBのハードドライブを搭載している内蔵コンピュータにはMicrosoft Windows 10がインストールされており、数千もの分析結果を保存して処理できます。高解像度の10.4インチLCDタッチスクリーンは、ウォークアップ操作に最適です。

標準的な主電源に接続し、電源を入れるだけで装置を利用する準備が整います。

内蔵装置

簡単な通信方法

標準的なコンピュータの周辺機器をUSBやネットワーク接続することで、拡張使用やアプリケーション開発に使用したり、操作中のオペレータをサポートしたりします。

簡単な通信方法

漏出保護

システムの繊細な中心部を保護するために、漏出保護ホイルが取り付けられています。漏出が発生した場合、オペレータは簡単にホイルを交換できます。

漏出保護

Accessories

標準物質(参照物質)

RoHS

RoHS規制物質の正確な元素分析
RoHS

TOXEL

XRFを使用したポリマーやプラスチックに含まれる有害元素の正確な分析
TOXEL

認定参照資料CRM

Claisseはいつでもお客さまのご要望にお応えします。
認定参照資料CRM

ソフトウェア

イプシロンソフトウェア

イプシロンソフトウェアは、XRF分析ソフトウェアのプラットフォームであり、PANalyticalのEpsilon 1およびEpsilon 4ベンチトップタイプEDXRFシステムシリーズで使用されています。

イプシロンソフトウェア

Stratos

このソフトウェアは、迅速でシンプルな非破壊的な方法でコーティング、表面層、および多層構造を分析できます。
Stratos

Omnian

Omnianソフトウェアを使用すると、専用の分析方法や認定済み標準物質が存在しない場合でも、最適な分析を実現することができます。

Omnian

異同識別(フィンガープリント)ソフトウェア

Epsilon EDXRFと組み合わされたFingerPrintソフトウェアモジュールは、分析速度が重要で実際の組成は重要ではない場合の材料テストに最適です。

異同識別(フィンガープリント)ソフトウェア
