The combination of usability and performance takes your lab work to a new level.
Aeris Research Edition gives you better information and deeper insights, so you can get to the answers more effectively, refine your materials, advance your knowledge and push forward that scientific frontier.
Whatever project you are working on, the fast acquisition of phase information from your sample in question can be crucial for your research.
Just collect X-ray diffraction data with Aeris Research and subsequently employ the HighScore suite to obtain a wealth of crystallographic information.
With measurement configurations including reflection, transmission and grazing incidence X-ray diffraction (GIXRD), you have all you need to get the best data for any type of polycrystalline material.

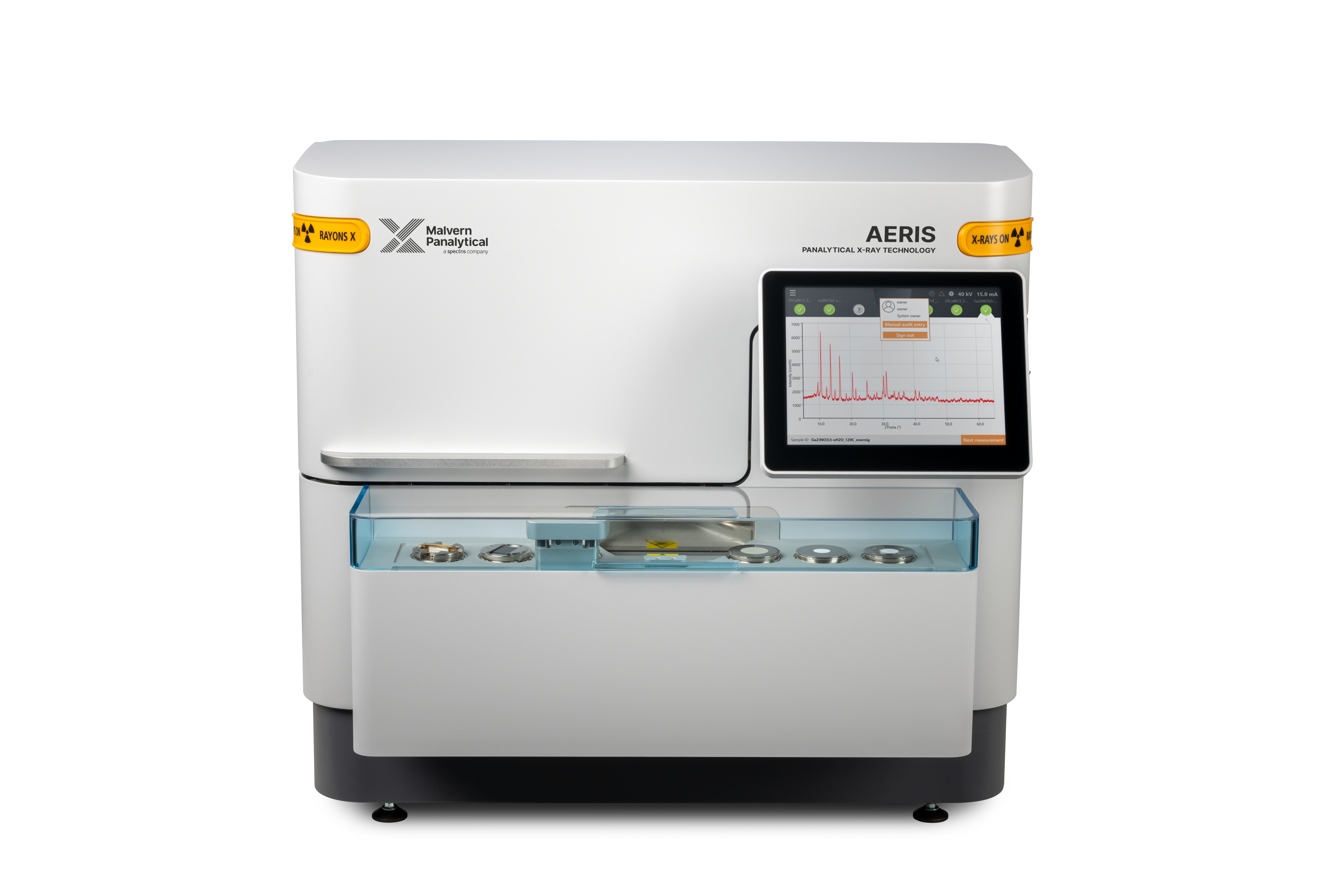

The most intuitive X-ray diffractometer: Aeris is an easy-to-operate and user-friendly benchtop X-ray diffractometer. With its intuitive operation, Aeris makes X-ray diffraction so simple that it is accessible for everyone.

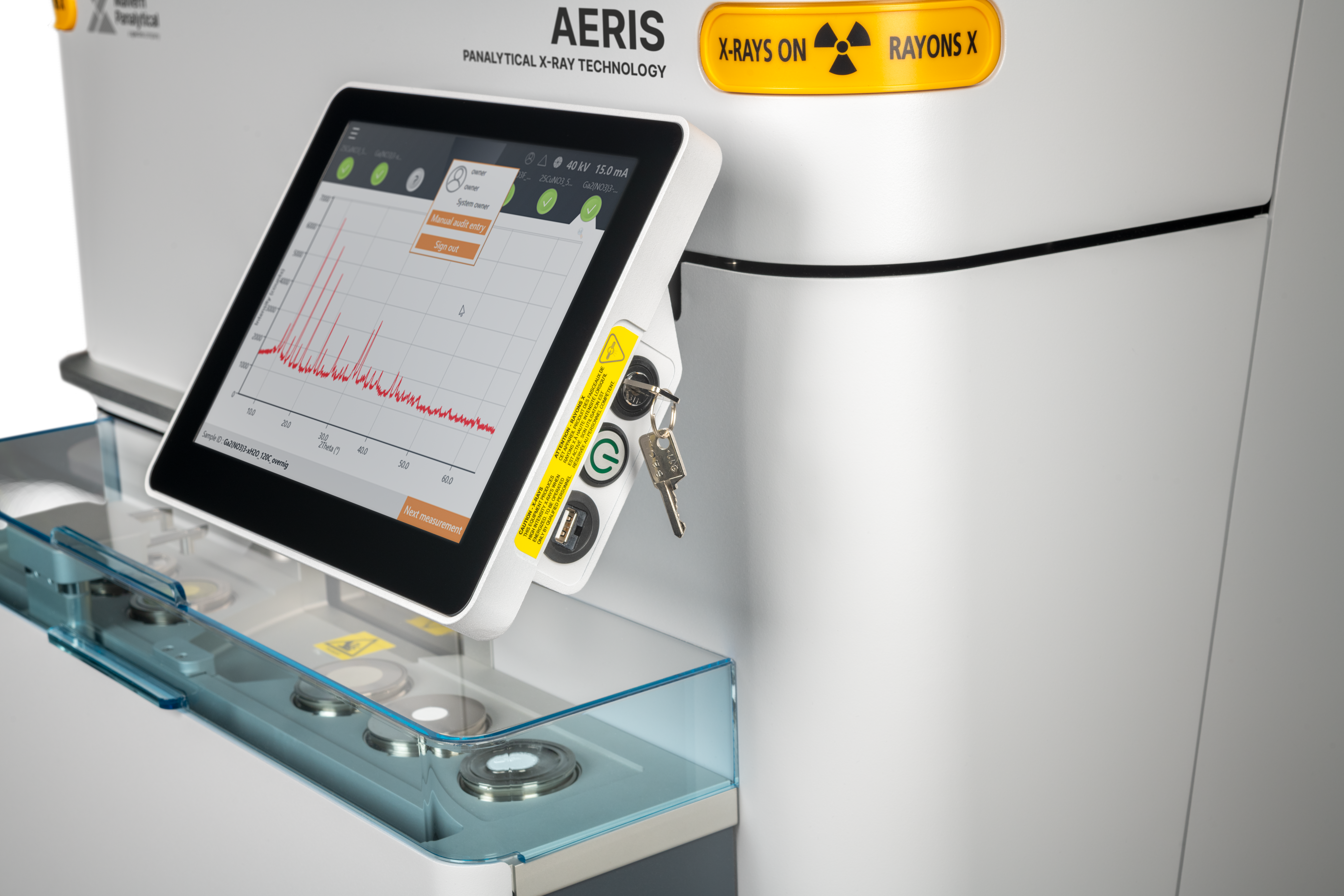

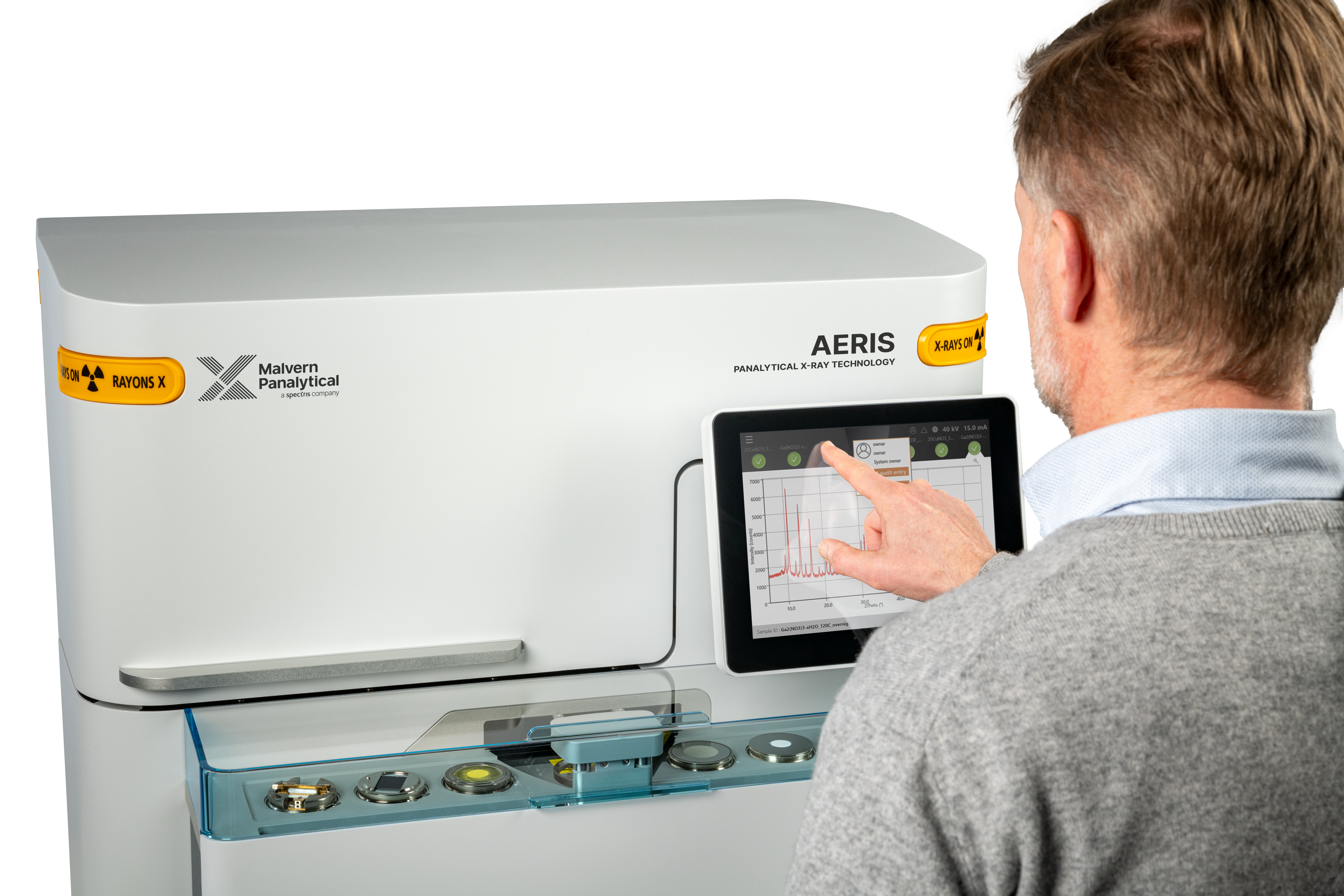

The unique touch screen user interface lets you proceed effortlessly through the measurement process of your samples. Your results are always just a few taps away:
Outperforming expectations
Aeris is your workhorse for rapid and reliable phase identification and Rietveld analysis of powder samples.
Thanks to the incorporation of technologies that have already proven their benefits on Malvern Panalytical's high-end systems, the Research edition of Aeris delivers data quality that was previously only possible with a full-size floor-standing system.
With the optional 2D detector you can teach the fundamentals of powder diffraction in a visual manner.
Aeris is very flexible and offers possibilities for all sorts of powder diffraction measurements.
The instrument can accommodate various types of sample holders in combination with a sample changer and it can be equipped with a BTS 500 Benchtop Heating Stage.
No cooling water, no chiller, no compressed air.
The only thing you need is a single-phase power socket.
The instrument is desktop, easy to use, analyzes the samples very quickly and is economic."
Sacari Sacari Elisban Juani — Universidad Nacional Jorge Basadre Grohmann
| Sample loading | External sample loading |
|---|---|
| Sample holders | Variety of full-sized sample holders capable meeting all requirements |
| Sample changing | Choose between a manual loading dock, 6-position sample changer, or 67-position high-capacity sample changer |
| Automation | Compatible with automation integration |
| Wavelength | Cu / Co |
|---|---|
| Tube setting | From 300 W to 600 W options in 30 kV or 40 kV setting |
| Tube housing | Patented design with Corrosion-resistant incident smart beam path technology (CRISP)
CRISP technology prevents corrosion in the incident beam path caused by X-ray induced ionized air. Patent no. US 8437451 B2 |
| Base configuration | Vertical goniometer, coupled and decoupled θ-θ, samples always horizontal |
|---|---|
| Geometry | Bragg-Brentano, Transmission, Grazing Incidence |
| Radius | 145 mm |
| Maximum 2θ range | -4° < 2θ ≤ 142° (with scanning detector and full active length) |
| Angle positioning | Direct optical position sensing (DOPS3) with lifetime positioning accuracy |
| Scan Speed | Max 2.17°/s |
| Resolution | < 0.04° 2θ on LaB6 (with 0.01 rad Soller slits) |
| 2θ linearity | < 0.04° 2θ |
| Smallest addressable increment | 0.001 ° |
| Spinning | Choice of spinner stages |
|---|---|
| Non-ambient | Heating stage option (BTS-500, BTS-150) |
| Exchange of stages | Alignment-free PreFIX exchange of stages |
| Special stages | On request (manual, MPSS, In-Situ) |
| Detector | Choose between the PIXcel1D, PIXcel3D and 1Der detectors |
| Dimensions | 690 x 770 x 786 mm |
|---|---|
| Dust protection | Closed system with external sample loading |
| External cooling water supply | Not needed |
| Compressed air supply | Not needed |
| Power Supply | 100 – 240 V, single phase |
| Computer | Internal instrument PC |
| Operation | Intuitive user interface with 10.4” touch screen |
| Interface | LAN, USB, HDMI |
The 1Der is the latest edition to a portfolio of leading solid-state detectors for X-ray diffraction (XRD) applications. Together with an unrivaled suite of optical configurations, the 1Der integrates seamlessly into the XRD platforms to combine ease of use with ultimate flexibility and data clarity for all 0D and 1D applications.
The 1Der is compatible with all X-ray sources that are used on the Empyrean and Aeris.
With the PIXcel1D detector you have a dedicated strip detector for 0D and 1D applications. You can measure up to 255 times faster than with a traditional point detector, without compromising data quality. With no need for cooling water, liquid nitrogen flow, counting gas or time-consuming calibrations it is a cost-effective solution.
With an unrivalled resolution and dynamic range, the PIXcel1D can be used with all of our diffractometers.
The PIXcel3D is a unique 2D solid-state hybrid pixel detector. Each pixel is 55 microns x 55 microns and the detector array is 256 x 256 pixels. The detector, now based on Medipix3 technology, brings unrivalled signal to noise with its point spread function of one pixel and multiple energy discrimination levels.
Whether you are interested in improved process control, or doing research and development, understanding your materials starts very often with understanding the powder diffraction pattern.
While Malvern Panalytical helps you in getting the best powder diffraction pattern with our diffractometers, one of your primary concerns is to identify the contents of your sample. HighScore is the ideal software for phase identification, semi-quantitative phase analysis, pattern treatment, profile fitting and more. The software package contains many supporting functions to display, manipulate and to evaluate your diffraction data. HighScore can handle all Malvern Panalytical XRD data formats and additionally most of the diffraction patterns from other suppliers.
Whether you are interested in improved process control, or doing research and development, understanding your materials starts very often with understanding the powder diffraction pattern.
After identification of all phases present in your sample with Malvern Panalytical’s HighScore, this all-in-one software suite with the Plus option continues to support you with your analysis. Whether your focus is on quantification with or without the Rietveld method, profile fitting, or pattern treatment; HighScore Plus is the solution and helps you performing your daily analyses.
We are proud to showcase tutorial videos made by our customer, JIAM Diffraction Facility from the University of Tennessee, USA. Scroll below for more videos.
Phase identification by X-ray diffraction means comparing unknown measured data with known reference data. This reference data is usually taken from one or several databases. The comparison process is often called search-match as well.
The quality and the contents of the different reference databases vary considerably, depending on the data quality and on the editorial process. Generally speaking there is a relation between price and quality.
XRD2DScan is Malvern Panalytical’s software package for the visualization, correction, integration, conversion and analysis of 2D diffraction data.
Anton Paar BTS 150 and BTS 500 benchtop heating stages are compact and cost-effective solutions for basic non-ambient X-ray diffraction experiments in reflection geometry. BTS 150 is equipped with a Peltier heating element enabling a temperature range from – 10 ºC to 150 ºC. The resistance heater of BTS 500 allows the heating of a sample from ambient temperature up to 500 ºC. Both heating stages can be used with an air, vacuum or inert gas atmosphere. A thermocouple is placed close to the sample for accurate temperature measurement and control. An optional beam knife can be used to minimize low- angle background.

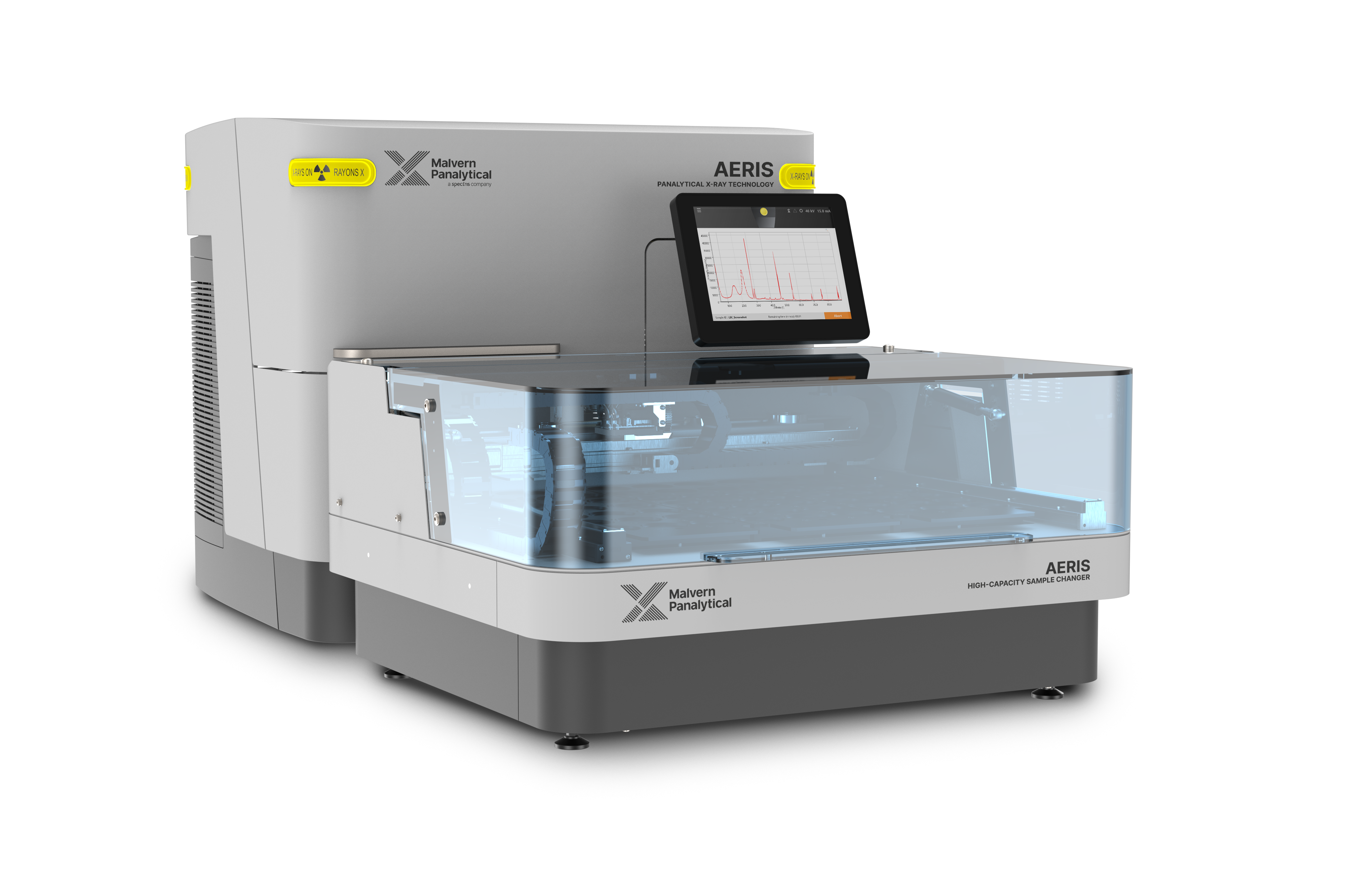

For high-throughput environments, look no further than the Aeris High-Capacity Sample Changer. Its proven robotic sample handling technology enables unattended analysis of over 60 samples, delivering 50% better resource efficiency.
More information
Full integration into multi-system automated labs where the Aeris instrument is operated through UAI interface. Samples are provided to the instrument either with belt automation connected to our automatable changer or with robotic handling, where a robot arm places samples directly on the changer platform.
The 6-position sample changer enables batch processing of 6 samples at a time, increasing efficiency and reducing the frequency of operator intervention. Ideal for medium-throughput laboratories.

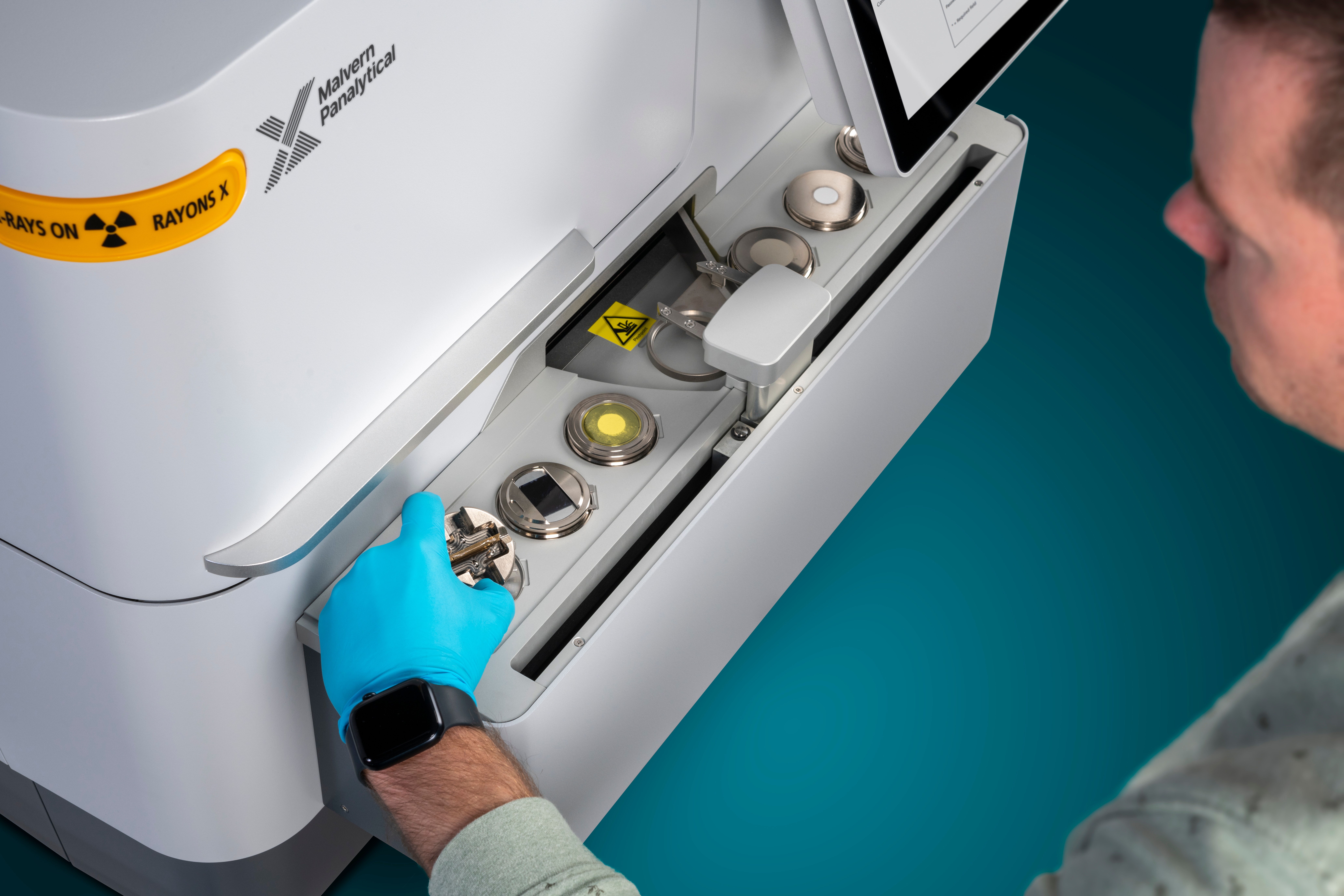

For users with low sample volumes or infrequent sample changes, the external sample platform allows you to load and replace a single sample while still taking advantage of the automated transfer into the XRD measurement area for accurate sample handling, each and every time.
