Overview

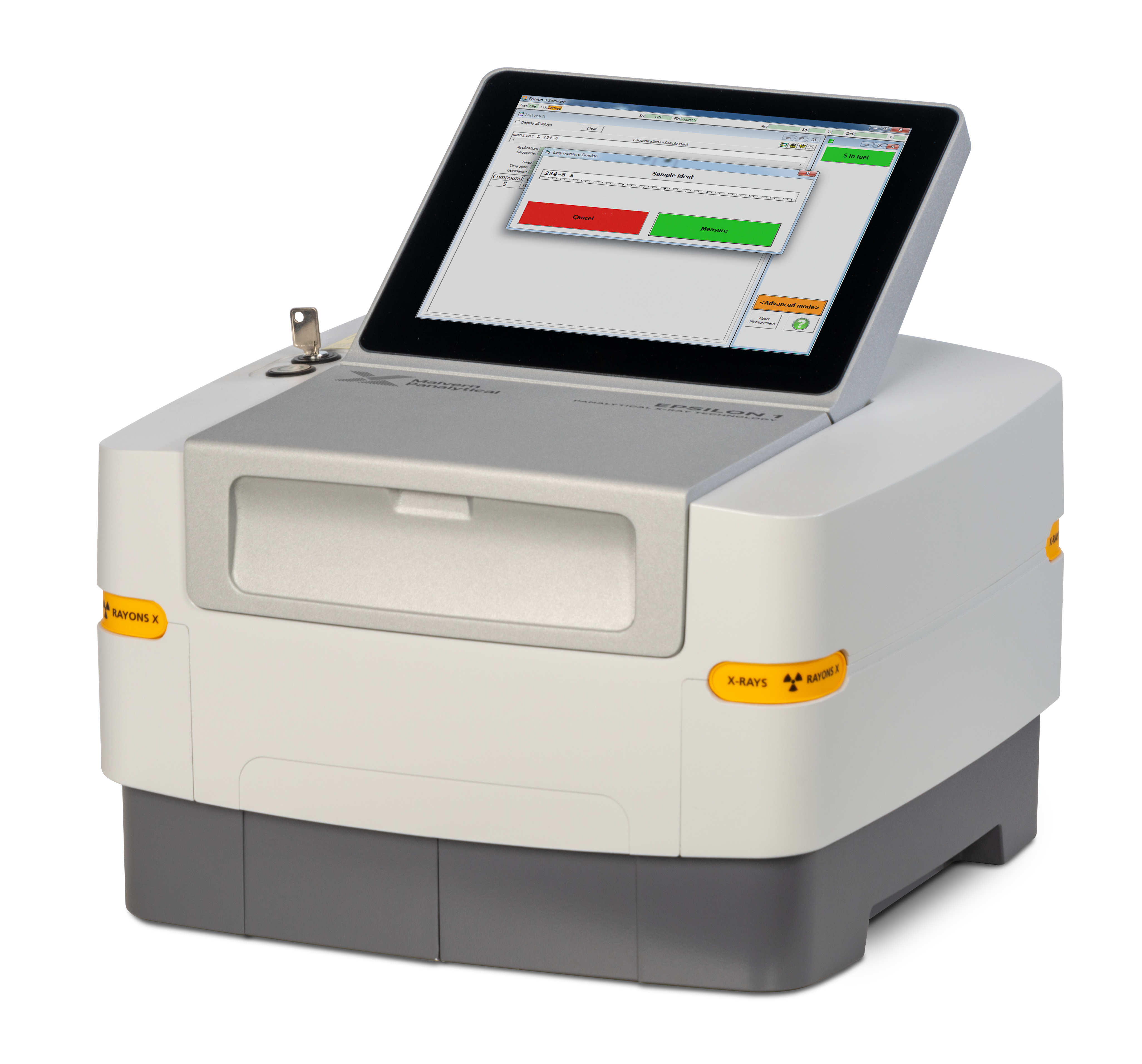

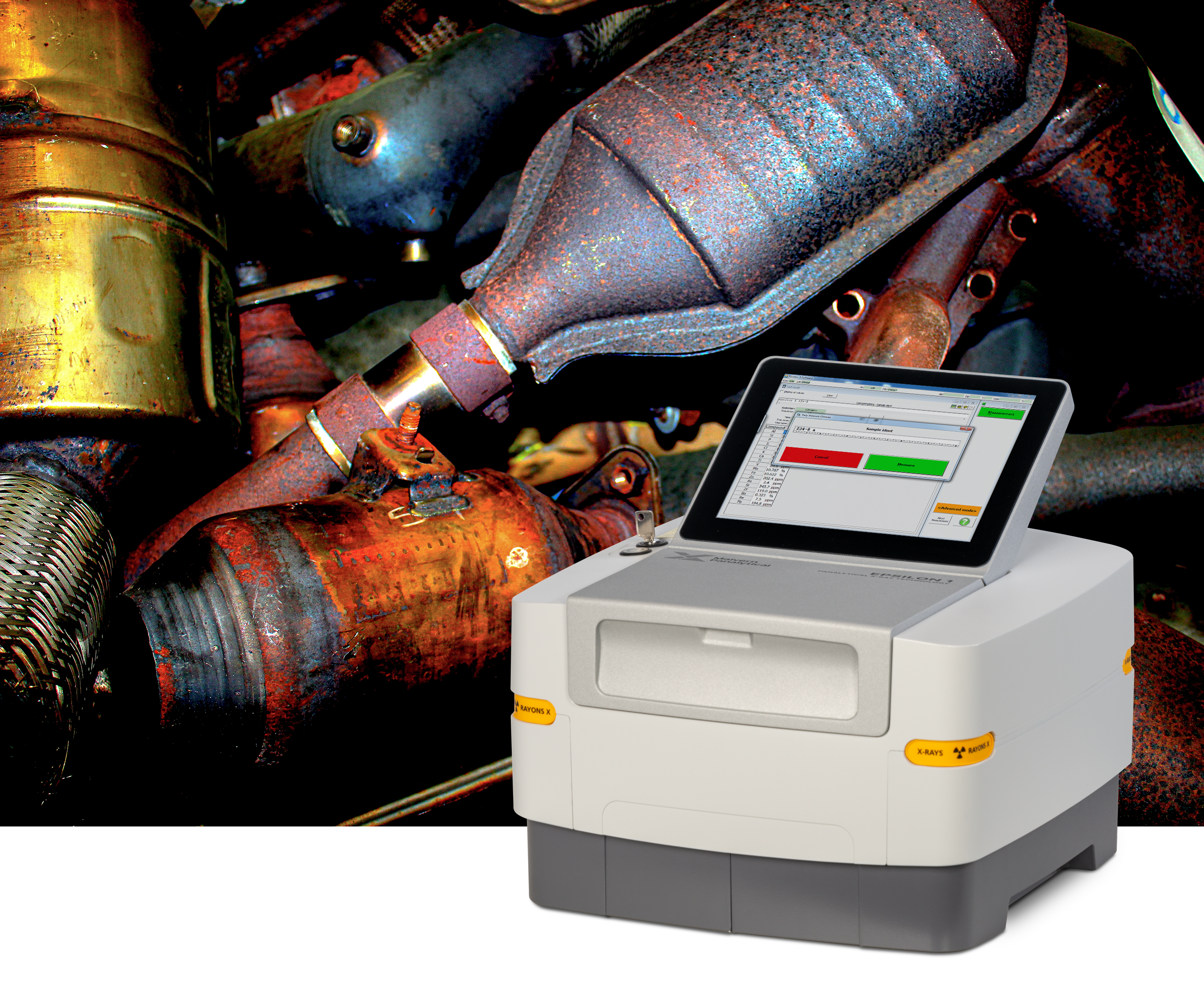

Epsilon 1 will be pre-calibrated in the factory for analyzing of Pt, Pd and Rh in spent automotive catalytic convertors. Put loose powder in a sample cup and measure directly.
![[Periodic_Table_Epsilon_1_automotive_catalyst_recycling.jpg] Periodic_Table_Epsilon_1_automotive_catalyst_recycling.jpg](https://p3.aprimocdn.net/malvernpanalytical/deb9313a-e85a-4409-9a2a-ae9a0095bb20/Periodic_Table_Epsilon_1_automotive_catalyst_recycling_Original%20file.jpg)
The accuracy of the method is validated by measuring Certified Reference Materials. The results clearly demonstrate the capability of Epsilon 1 for the analysis of valuable precious metals Pt, Rh and Pd in catalytic converters.
| Sample name (repeats) | Compounds | Certified conc. | Average conc. | RMS | Rel. RMS (%) |
|---|---|---|---|---|---|
| NIST 2556 (20x) | Pt (ppm) | 697.4 +/- 6.3 | 695.6 | 7.2 | 1.1 |
| Rh (ppm) | 51.2 +\- 0.5 | 53.9 | 2.0 | 3.7 | |
| Pd (ppm) | 326 +/- 1.6 | 322.8 | 7.2 | 2.2 | |
| NIST 2557 (20x) | Pt (ppm) | 1131 +/- 1.9 | 1189.6 | 13.2 | 1.1 |
| Rh (ppm) | 135.1 +/- 1.9 | 141.6 | 2.2 | 1.6 | |
| Pd (ppm) | 233.2 +/- 1.9 | 236.9 | 3.6 | 1.5 | |
| ERM-EB504a (5x) | Pt (ppm) | 1414 +/- 9.0 | 1424.8 | 5.1 | 0.4 |
| Rh (ppm) | 210 +/- 2.2 | 216.2 | 2.3 | 1.1 | |
| Pd (ppm) | 1596 +/- 11 | 1675.1 | 18.3 | 1.1 | |
| FLX 133 (5x) | Pt (ppm) | 465 +/- 32 | 462.1 | 4.0 | 0.9 |
| Rh (ppm) | 242 +/- 4 | 237.6 | 4.0 | 1.7 | |
| Pd (ppm) | 1075 +/- 33 | 1093.8 | 15.3 | 1.4 |
Features
|
Factory calibrated |
Operator friendly |
X-ray shielded |
High level of trust |
![[icon calibrate.png] icon calibrate.png](/fr/assets/icon%20calibrate_53-97472.png)
![[icon operator simplicity button.png] icon operator simplicity button.png](https://p3.aprimocdn.net/malvernpanalytical/43c82c57-6fcc-46c9-9446-ae940082edcc/icon%20operator%20simplicity%20button_Original%20file.png)
![[icon gamma-ray x-ray shielded.png] icon gamma-ray x-ray shielded.png](https://p3.aprimocdn.net/malvernpanalytical/a8b9aed0-7cda-4d2a-a459-ae940082ed09/icon%20gamma-ray%20x-ray%20shielded_Original%20file.png)
![[icon trust shield with tick.png] icon trust shield with tick.png](https://p3.aprimocdn.net/malvernpanalytical/f1939676-b9b3-4e56-8ebd-ae940082ef52/icon%20trust%20shield%20with%20tick_Original%20file.png)
Guaranteed maximum safety
All Malvern Panalytical X-ray solutions are designed according to the strict regulations of regulatory bodies. The Epsilon 1 tabletop system shields its users against X-rays during analysis.
You’ll have peace of mind in the lab thanks to a unique internal interlocked enclosure providing complete radiation protection, deserving its Vollshutz classification. No need to worry about safety as the system is fully enclosed and completely safe.
Be Flexible
Sometimes, it’s just not possible or worthwhile to calibrate all your sample types. Perhaps there are no standards, or those that are available are too expensive. But you can still use a generic method to analyze the elemental composition of a single sample. Even better – this method is available on our Epsilon 1 XRF benchtops.
How does this work? By using our standardless Omnian software! Combining twenty generic samples with the power of physics, Omnian can quantify elemental composition for a wide variety of sample types – including polymers and liquids.
Système autonome

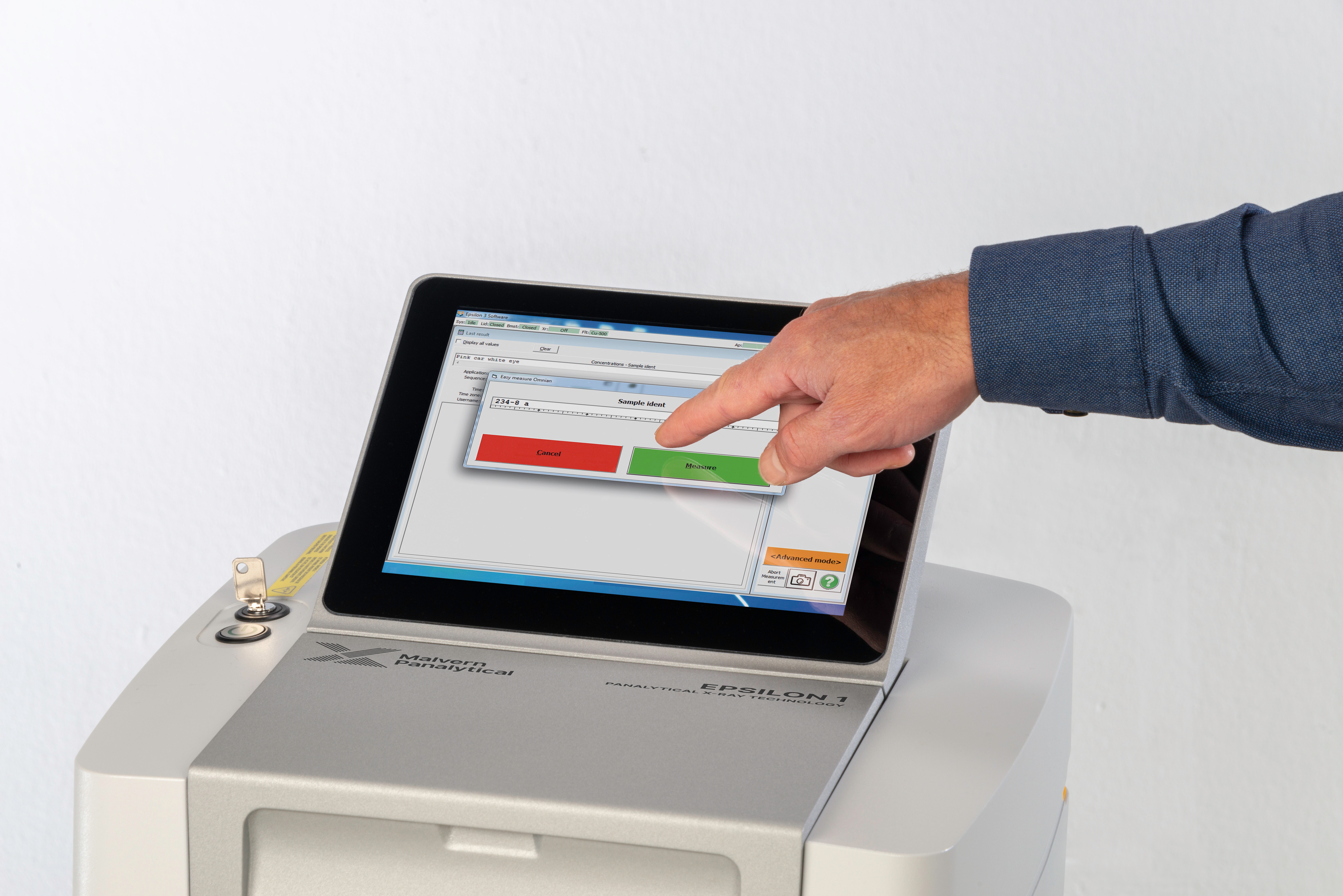

Un ordinateur intégré exécutant Microsoft Windows 10 et équipé d'un processeur puissant et d'un disque dur de 120 Go garantit une certaine flexibilité pour stocker et gérer des milliers de résultats. L'écran tactile LCD de 10,4 po (26,4 cm) haute résolution est idéal pour un déplacement aisé.
Pour faire fonctionner l'analyseur, branchez-le sur une prise secteur standard ; il est alors prêt à être mis sous tension.
Communication facile

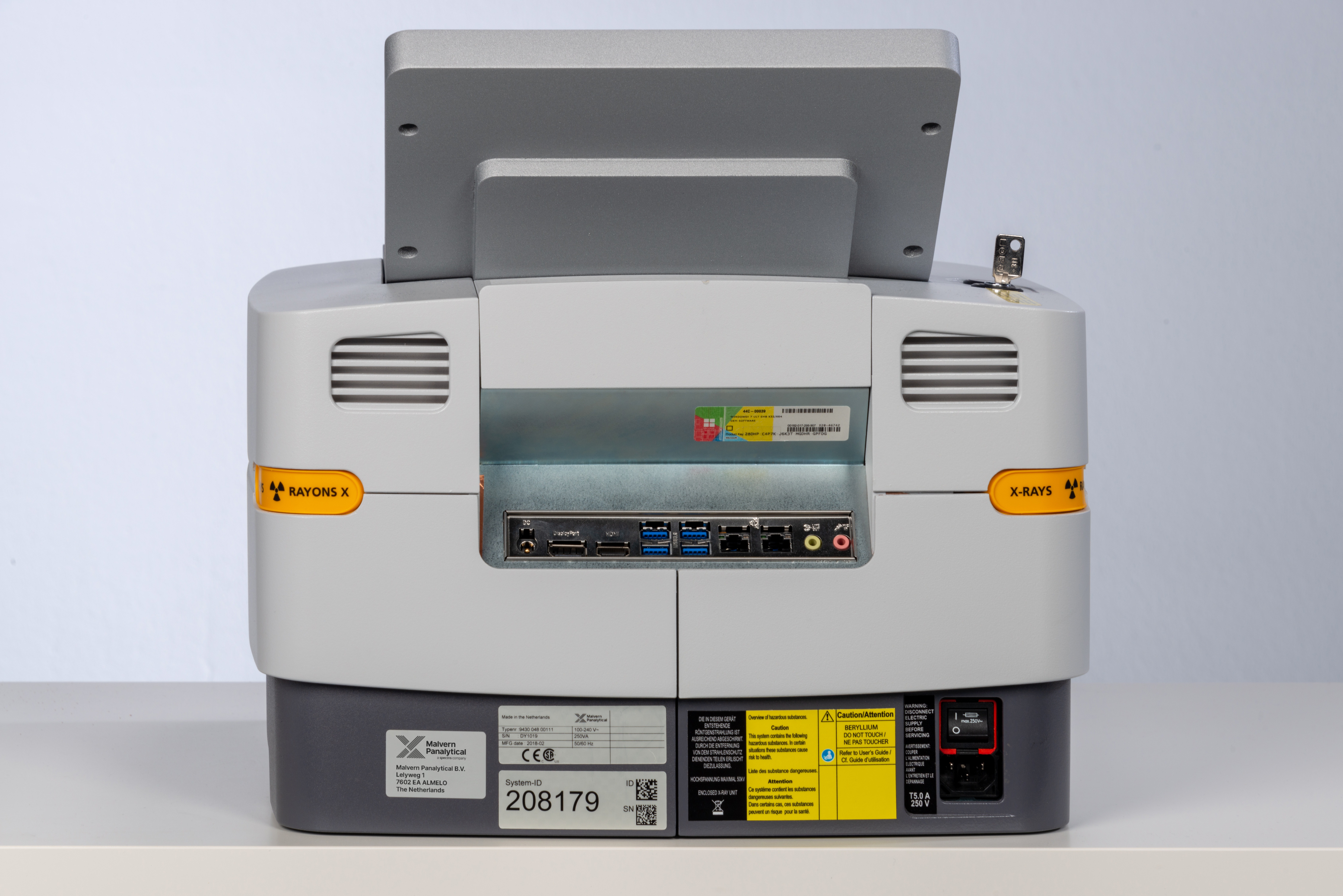

Des connexions USB et réseau pour des périphériques informatiques standard permettent une utilisation prolongée, le développement d'applications et la position assise de l'opérateur.
Protection contre les déversements

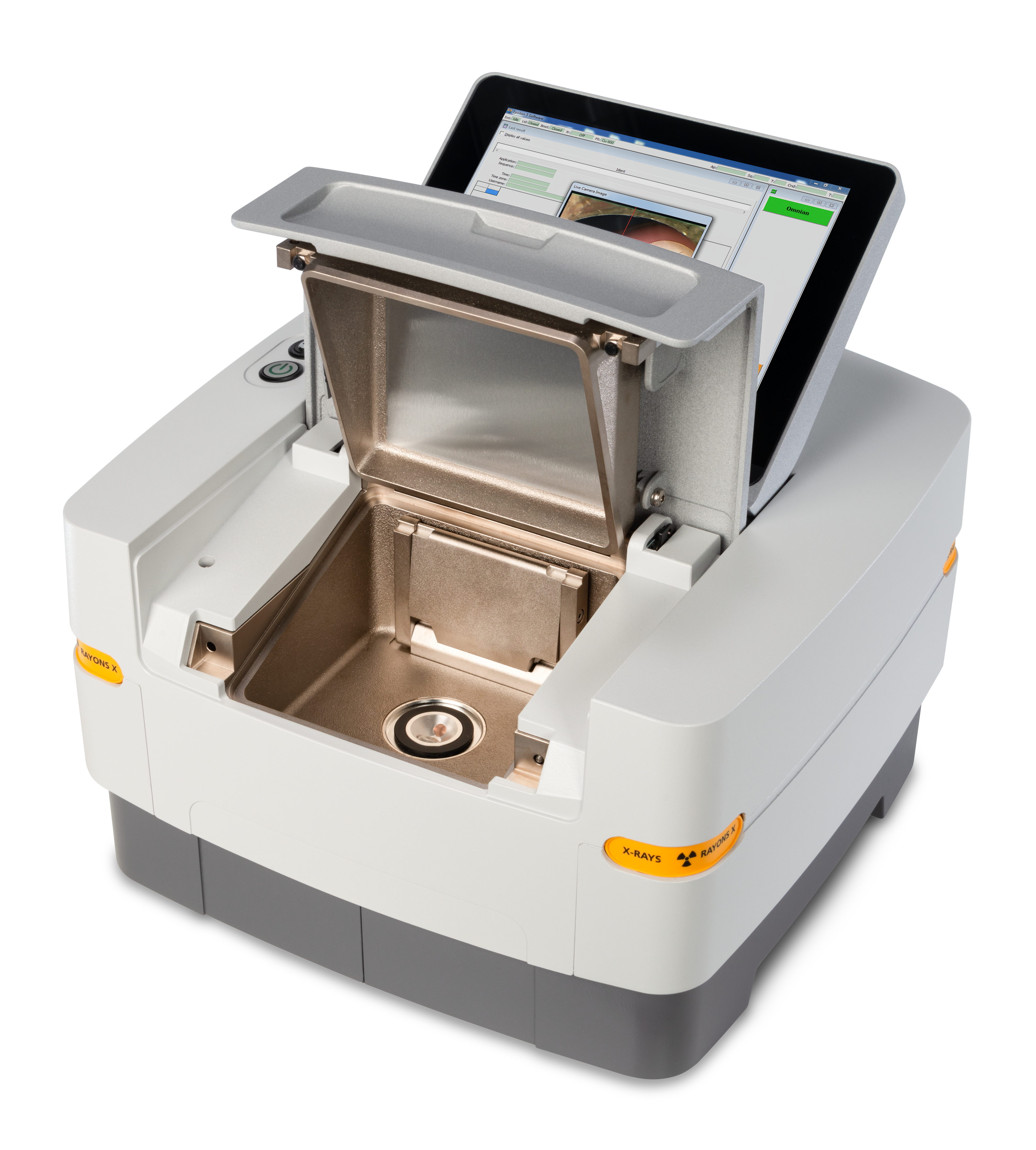

Un film de protection contre les déversements est en place pour protéger le cœur fragile du système. En cas de déversement, les feuilles peuvent être remplacées facilement par l'opérateur.
Accessories
Étalons (matériaux de référence)
Logiciels
Logiciel Epsilon
La plate-forme logicielle Epsilon d'analyse par spectrométrie de fluorescence X est utilisée dans toute la gamme des systèmes de paillasse Epsilon 1 et Epsilon 4 EDXRF de PANalytical.
Stratos
Omnian
Le logiciel Omnian permet aux utilisateurs d'obtenir les meilleures analyses lorsqu'il n'existe aucune méthode dédiée ni d'étalons certifiés.
FingerPrint
Un module logiciel FingerPrint combiné avec un système EDXRF Epsilon est idéal pour les essais de matériaux lorsque la vitesse d'analyse est importante mais que la composition réelle ne présente aucun intérêt.
Sécurité renforcée des données
Support
Services
Solutions to maximize the return on your investment
To assure that your instrument remains in top condition and performs on the highest level, Malvern Panalytical offers a wide range of services. Our expertise and support services assure an optimal functioning of your instrument.
Support
Service for a lifetime
- Phone and remote support
- Preventive maintenance and checkups
- Flexible Customer Care Agreements
- Performance certificates
- Hardware and software upgrades
- Local and global support
Expertise
Adding value to your processes
- Sample preparation development/optimization
- Analytical methodologies
- Turnkey solutions for XRD
- Operations via IQ/OQ/PQ, quality assurance (GLP, ISO17025) or round robins/inter laboratory studies
- Automation of lab processes
- Consultancy services
Training and education
- Training on-site or at our competence centers
- Broad range of basic and advanced courses on products, applications and software
Analytical services and calibration materials
- Expert (XRF) analyses services
- Oxides and trace analysis
- Customized calibration materials
