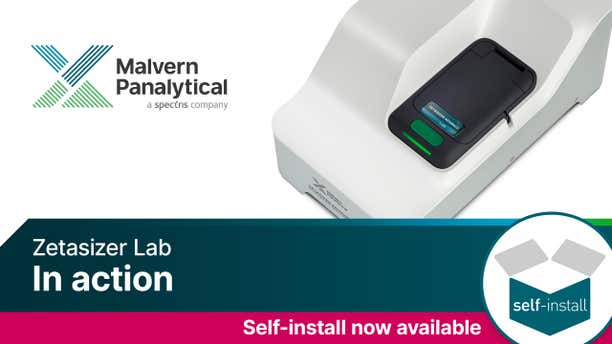

Zetasizer Lab

Our Zetasizer Lab system offers traditional 90-degree side-scatter size measurements but still offers enhanced features. The Zetasizer Lab incorporates Adaptive Correlation, M3-PALS and constant current zeta mode as well as our extended size range analysis when used with ZSU1002 capillary cell. The Zetasizer Lab also ships with ZS Xplorer, our easy-to-use analytical software. ZS Xplorer offers instant feedback on data quality, and guidance on how to improve your results.

Works with OmniTrust: Malvern Panalytical's compliance solution for the regulated environment

Download brochure

Contact support

User manuals

Version number: MAN0592-15-EN

Zetasizer Advance Series User Guide (English)

Version number: MAN0593-10-EN

Zetasizer Advance Series Basic Guide (English)

Version number: MAN0604-05-EN

Zetasizer Advance Series Accessories Guide (English)

Version number: MAN0593-08-ZH

Zetasizer Advance 基础指南

Version number: MAN0593-08-JA

ZETASIZER ADVANCE SERIES ベーシックガイド

Version number: MAN0593-06-FR

Zetasizer Advance Guide Pratique

Version number: 07

Zetasizer Advance Guía Básica

Version number: MAN0593-05-EN

Zetasizer Advance Series Basic Guide (German)

Software downloads

ZS Xplorer 4.0.0 is the first version to support the new Zetasizer Sample Assistant automated particle size and Zeta potential sample changer. Small updates to Smart Manager components are also included.

Please Note: OmniTrust (regulated environment) users will not be able to access Sample Assistant as the feature does not currently support OmniTrust.

See SUN for full details.

4.0.0

Maintenance release, updates to key services and addition of Titration summary data logs.

See SUN for full details.

3.31

ZS Xplorer version 3.3 extends OmniTrust support to the Studies features of the main application. Previously OmniTrust users were prevented from accessing Studies to prevent un-audited events. From 3.3 OmniTrust users can now access Studies for Molecular Weight and associated parameters with permissions and auditing of events within the Studies features.

Note that Studies by their nature are intended for advanced users and to be flexible in their analysis. Users not requiring Studies features can still prevent access to these features using permissions in OmniAccess.

Version 3.3 also addresses a few minor bug fixes.

See SUN for full details.

3.30

ZS Xplorer 3.2.2 has the following updates:

Software re-branded to Malvern Panalytical brand

Minor bug fixes - one of which may have prevented instrument connection

Bug fix for OmniTrust users that meant editing of records was possible, even when user permission for this action was disabled (recommended update for OmniTrust users currently on ZS Xplorer 3.2.1.)

Updated Toluene calibration routine to prevent incorrect reporting of issues with calibration.

See SUN for full details.

3.22

ZS Xplorer 3.2.1 adds Smart Instrument enrollment - the first step in bringing Zetasizer into Malvern Panalytical's Smart Manager services.

Several installer improvements have been made to reduce ZS Xplorer requirements around .NET and WebView2 components.

We have also added ability to edit peak thresholds for size measurements and refinements on CSV exporting from parameter tables.

See SUN for full details.

3.21

ZS Xplorer version 3.2.0 adds upper and lower display range configuration for Size/MADLS & Particle Concentration measurements.

Introduces Data Quality Advice for MADLS & Particle Concentration measurements.

Adds further Trend analysis improvements and bug fixes.

Extends Japanese and Chinese localization to Studies and Data Quality Advice.

Adds speed and robustness improvements to Scattering standard measurements.

Other improvements and bug fixes.

See SUN for full details.

3.20

ZS Xplorer version 3.1.0 extends studies and concentration trend measurements to support the Zetasizer Advance Lab models and also adds the capability to perform concentration trends in either back or side scatter on Zetasizer Advance Ultra models. Concentration trends also now supports setting of measurement temperature and adds display of R² value to tables and graphs.

Exporting of data to CSV file from graphs and tables in Concentration trends and from Parameter and Statistic tables in Analyze views has been introduced.

Data quality advice for Zeta potential measurements has been further refined to provide users with better diagnosis of sample/measurement issues.

Exporting a study now provides an option to include the results data for transfer of the complete study between data repositories.

Various bug fixes, see software update notification for details.

3.10

ZS Xplorer version 3.0.0 introduces studies and concentration trend measurements for the determination of molecular weight by static light scattering and kD by dynamic light scattering. Note: This first release does not support Zetasizer Lab or OmniTrust users. Auto averaging for Zeta, MADLS and Particle concentration has also been added along with other quality of life features and bug fixes. See SUN for details.

3.00

ZS Xplorer version 2.3.1 introduces post-analysis averaging for Zeta, Particle Concentration and MADLS size measurements. Zeta mobility parameters and graphs have

been added, as well as a count rate meter and

localization for Chinese (Simplified) and Japanese language support.

Important: This version supports OmniTrust 1.4.0; OmniTrust users should upgrade their installation to 1.4 if upgrading to ZS Xplorer 2.3.1.

2.31

ZS Xplorer version 2.3.0 introduces post analysis averaging for Zeta, Particle Concentration and MADLS size measurements. Zeta mobility parameters and graphs have also been added, as well as a count rate meter.

Important: This version supports OmniTrust 1.4.0; OmniTrust users should upgrade their installation to 1.4 if upgrading to ZS Xplorer 2.3.0.

details.

2.30

Maintenance release see Software Update Notification for details.

2.20

ZS Xplorer 2.1 offers improvements to OmniTrust regulated environment users by providing improved control of methods and provision of a method audit trail. This version also provides improvements by provision of major size distribution percentiles and automatic size averaging function. A critical bug that could affect zeta potential data for very low scattering samples has also been fixed. See the Software Update Notification for more details.

2.10

Bug fix: Changing sample details on locked methods
- Fixed a bug around method permissions for OmniTrust regulated environment users that prevented editing of method sample details.

2.01

OmniAccess

Flexible/configurable roles in Empyrean and Aeris (now aligns with Zetasizer)
Summary of roles/permissions
Default roles for instrument applications
Support for complex domains
Wizard for initial set up and massively improved UI to improve configuration/set up

OmniTrail

Record Audit trail events viewable in OmniTrail.
Show/compare authorization files

More information can be found in the Release and Installation Notes.

1.60

OmniAccess

Flexible/configurable roles in Empyrean and Aeris (now aligns with Zetasizer)
Summary of roles/permissions
Default roles for instrument applications
Support for complex domains
Wizard for initial set up and massively improved UI to improve configuration/set up

OmniTrail

Record Audit trail events viewable in OmniTrail.
Show/compare authorization files

More information can be found in the Release and Installation Notes.

1.40

Accessories

Configure the Zetasizer Lab for your applications and requirements with our range of configuration options:

Significantly improve your system utilization with the Sample Assistant – a new accessory for every Zetasizer Advance system. It frees the operator from manually changing samples.

The result? The same great data quality and versatility you expect from your Zetasizer Advance with even greater efficiency.

The MPT-3 is a cost-effective accessory for the Zetasizer Advance range, designed to automate your Zeta and/or Size vs. pH titrations, helping you understand how your materials behave as a function of pH.

The zeta potential and/or size of your materials with pH changes can be critical in understanding:

Material stability
Agglomeration
Flocculation
Point of net-zero charge (isoelectric point)
Storage conditions

The SV-10 measures viscosity with the accuracy required for dynamic light scattering, for the conversion of diffusion speed to size, and electrophoretic mobility to zeta potential, in an extremely simple and rapid system.

Cell and cuvette options

The zeta potential of colloids and molecules is extremely sensitive to contamination from components of a previous sample used in a measurement cell. The use of a disposable cell completely eliminates this potential contamination issue.

The folded capillary cell provides the benefits of the accuracy of measurement of a capillary cell with the ease of use of a disposable cell.

Although, disposable, including the electrodes, for low conductivity samples each cell can be used for hundreds of measurements if required.

The cell can be used with the autotitrator, where multiple measurements are routinely done over a wide pH range.

The dip cell is used for the measurement of zeta potential of samples in aqueous and non-aqueous dispersants, and is designed to be cleaned and reused. It is for batch measurements using standard polystyrene or glass cuvettes.

Our low volume disposable sizing cell (ZSU1002) design is unique in offering easy-fill, ultra-low volume size measurement in as little as 3 μL.

Measure larger particles (up to 10 μm) with greater accuracy thanks to the inherent physical qualities of the capillary sizing cell
The cell also eliminates the errors associated with multiple scattering, allowing samples to be measured over a wider dynamic concentration range than would normally be possible at side scatter (90°)
The use of ZSU1002 is supported on Zetasizer Lab and Zetasizer Ultra models

The high concentration cell enables the measurement of the zeta potential of samples with little or no dilution in any Zetasizer Advance system that measures zeta potential.

The cell has a flow configuration so can be used for stop-flow size and zeta potential measurements using an MPT-3 autotitrator as well as batch measurements.

For size and zeta potential measurements using the ‘dip’ cell
Compatible with aqueous and non-aqueous solvents and dispersants

100 disposable cells complete with 100 stoppers to avoid cross-contamination
For size measurements using aqueous dispersants
Compatible with zeta potential measurements using the dip cell

For size and molecular weight measurements
Compatible with aqueous and non-aqueous solvents and dispersants

Compatible with size and molecular weight measurements with aqueous and non-aqueous solvents and dispersants
Minimum sample volume 12 microliters
Maximum volume 45 microliters

Events and training

All events

Products:: Zetasizer Advance Range, Zetasizer Lab, Zetasizer Lab (Blue), Zetasizer Pro, Zetasizer Pro (Blue), Zetasizer Ultra, Zetasizer Ultra (Blue), Zetasizer Lab, Zetasizer Pro, Zetasizer Ultra
Technology:: Light Scattering, Multi-Angle Dynamic Light Scattering (MADLS)
Industry:: Pharmaceutical, Academia, Advanced Manufacturing, Aerospace, Agriculture, Biologics, Automotive, Building Materials, Chemicals, Chemicals/Coatings, Semiconductor/Electronics, Energy/Battery, Environment, Government/Institutes, Food and Beverages, Metals, Minerals, Mining, Oils, Fuels and Chemicals, Personal Care Products, Polymers, Power Generation, Service labs/Integrators, University

In-Person Zetasizer Advance Training - UK

Products:: Zetasizer Advance Range, Zetasizer Lab, Zetasizer Lab (Blue), Zetasizer Pro, Zetasizer Pro (Blue), Zetasizer Ultra, Zetasizer Ultra (Blue), Zetasizer Lab, Zetasizer Pro, Zetasizer Ultra
Technology:: Light Scattering, Multi-Angle Dynamic Light Scattering (MADLS)
Industry:: Pharmaceutical, Academia, Advanced Manufacturing, Aerospace, Agriculture, Biologics, Automotive, Building Materials, Chemicals, Chemicals/Coatings, Semiconductor/Electronics, Energy/Battery, Environment, Government/Institutes, Food and Beverages, Metals, Minerals, Mining, Oils, Fuels and Chemicals, Personal Care Products, Polymers, Power Generation, Service labs/Integrators, University

Virtual Zetasizer Advance Training - EMEA

Products:: Zetasizer Advance Range, Zetasizer Lab, Zetasizer Lab (Blue), Zetasizer Pro, Zetasizer Pro (Blue), Zetasizer Ultra, Zetasizer Ultra (Blue), Zetasizer Lab, Zetasizer Pro, Zetasizer Ultra
Technology:: Light Scattering, Multi-Angle Dynamic Light Scattering (MADLS)
Industry:: Pharmaceutical, Academia, Advanced Manufacturing, Aerospace, Agriculture, Biologics, Automotive, Building Materials, Chemicals, Chemicals/Coatings, Semiconductor/Electronics, Energy/Battery, Environment, Government/Institutes, Food and Beverages, Metals, Minerals, Mining, Oils, Fuels and Chemicals, Personal Care Products, Polymers, Power Generation, Service labs/Integrators, University

In-Person Zetasizer Advance Training - UK

Webinar - Recorded

Products:: Zetasizer Advance Range, Zetasizer Lab, Zetasizer Pro, Zetasizer Ultra
Technology:: Dynamic Light Scattering, Multi-Angle Dynamic Light Scattering (MADLS)

Optimizing liposome & LNP production with microfluidics

Support contract options

Protect your investment and ensure optimized performance at all times with Malvern Panalytical’s service plans.

When you purchase a Malvern Panalytical product we understand that this is just the first stage of a working relationship that will last for the lifetime of the instrument. Depending on your needs, Malvern Panalytical will provide the support for your business.

Help Desk

Telephone and email support .
Operators who take responsibility for your call and ensure your query is answered.

Training

User training events
E-learning

Software downloads

A simple mechanism for receiving updates and new features

Malvern Panalytical’s service options- choose the right plan for you:

Malvern Panalytical Platinum Plan

For laboratories where maximizing instrument up-time is critical to its daily performance. Our highest level of response and the 'all inclusive' price plan takes care of those unexpected repair bills should the unfortunate occur.

Malvern Panalytical Gold Plan

Enhance your laboratory productivity by maintaining instrument efficiency. Still receive that priority response, combined with specialist technical and software support, we'll keep your instrument performance on track to deliver.

Malvern Panalytical Bronze Visit

For laboratories looking to optimize instrument performance, regular preventative maintenance is essential.

	Platinum Plan	Gold Plan	Bronze Visit
Annual PM/PV Test	yes	yes	no
Telephone / Email Support	yes	yes	no
Priority Response	yes	yes	no
Emergency Breakdown visits*	yes	yes	no
Parts Included	yes	no	no
E-Learning**	yes	yes	no
Technical & Software Support	yes	yes	yes
IQ/OQ (Pharma)***	yes	yes	yes

*including labour & travel costs ** Platinum 2 places per contract term, Gold 1 place per contract term ***available at an additional cost
